PowMr 4.2KW Hybrid Solar Inverter 24V To 220V MPPT Wifi
PowMr 4.2KW Hybrid Solar Inverter 24V To 220V MPPT Wifi
Couldn't load pickup availability

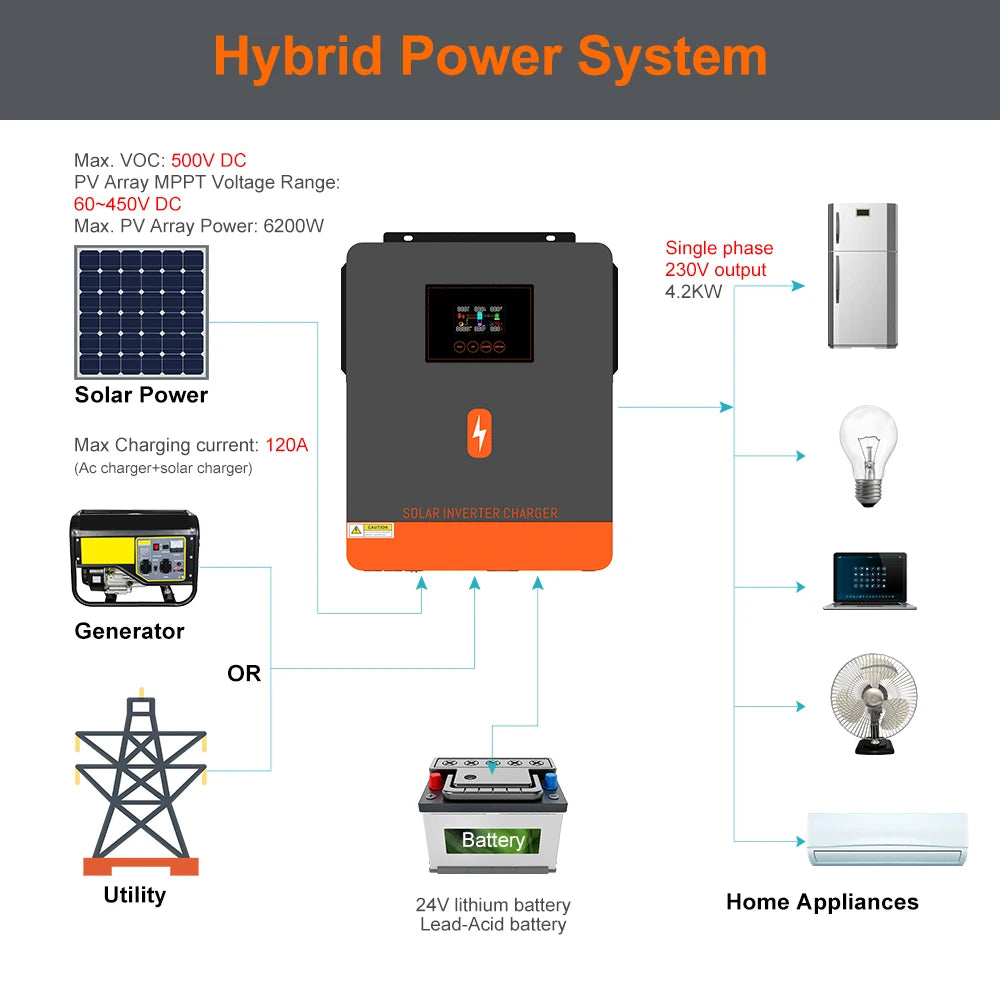

Power your home with PowMr’s 4.2KW Hybrid Solar Inverter, 24V to 220V MPPT that blends solar, battery, and mains power for uninterrupted energy resilience every day.
- Pure sine-wave output at 220–240Vac, MPPT 120A, and a 10 ms UPS transfer keep sensitive devices—PCs, routers, and essential appliances—running through outages.

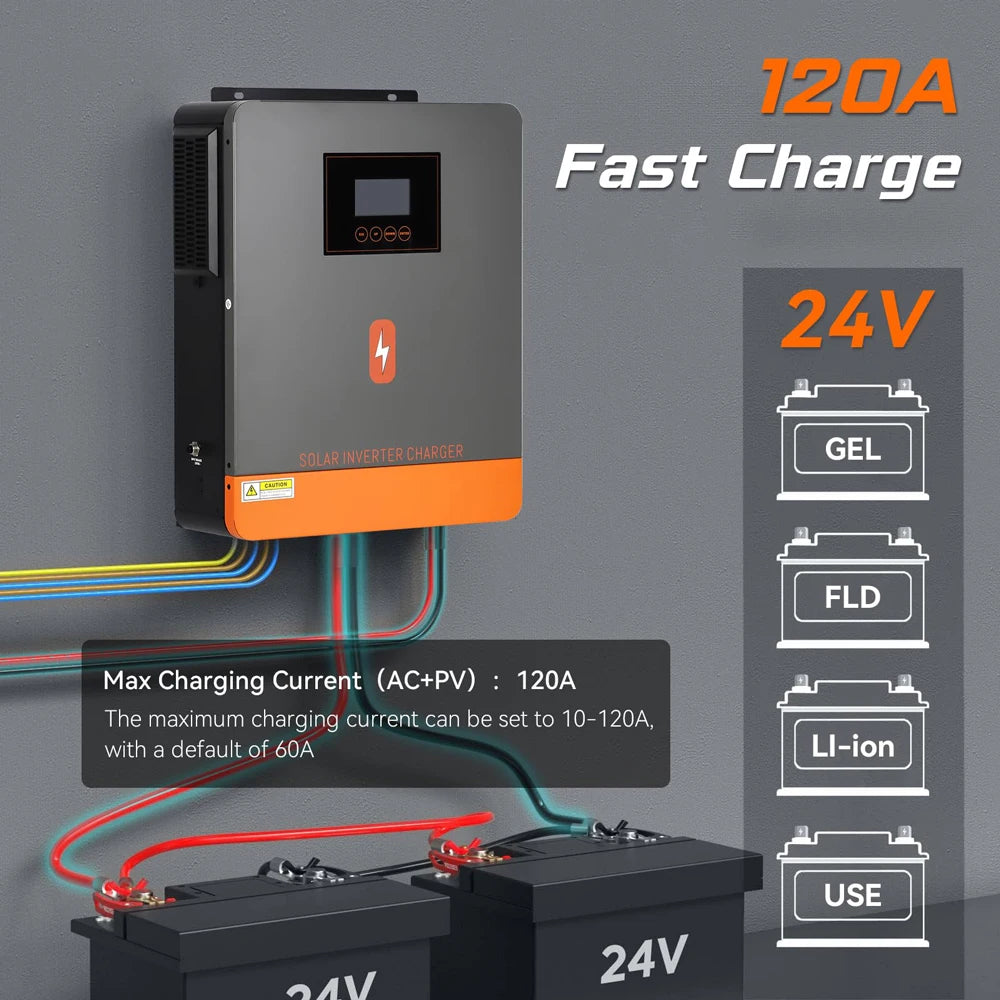

- Supports 24V battery banks (LiFePO4, lithium, lead-acid) with configurable charging currents and an LCD for quick, precise tuning.

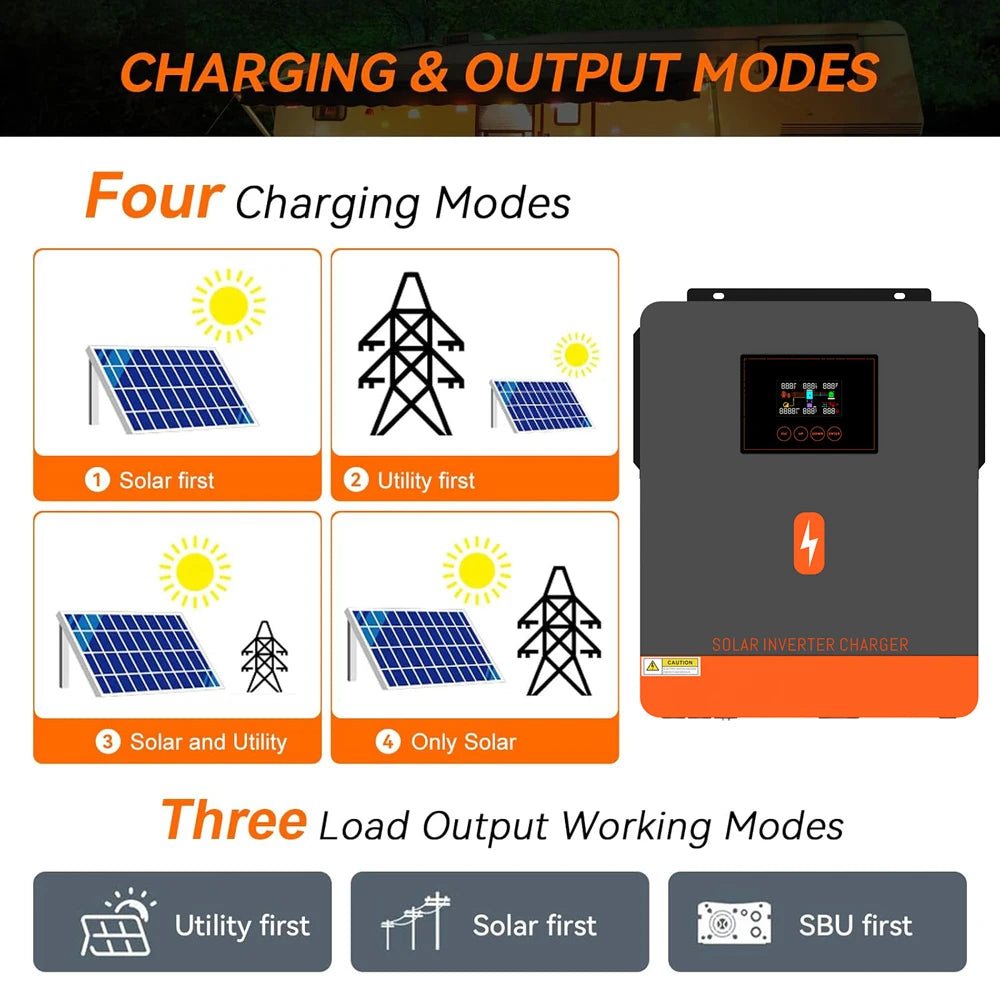

- Wi-Fi connectivity enables remote monitoring, status alerts, and easy setup of AC/solar charger priority for hybrid operation.

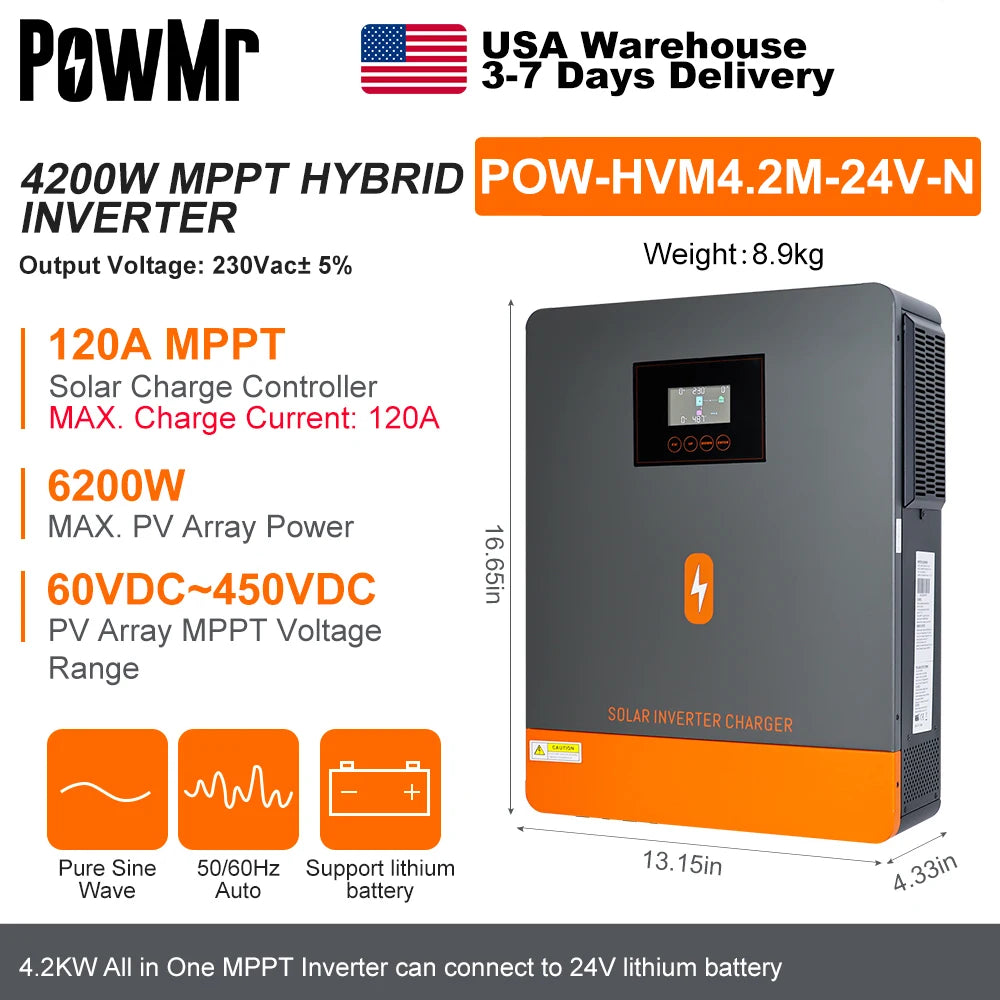

- Compact 9 kg chassis (358x116x442 mm) with overload, overheat, and short-circuit protections, auto restart, and grid/off-grid versatility.
Table 1 Line Mode Specifications | ||
INVERTER MODEL |
POW-HVM4.2M-24V-N |
|
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
Table 2 Inverter Mode Specifications | ||
Rated Output Power |
4.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50HZ |
|
Peak Efficiency |
0.93 |
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
24Vdc |
|
Cold Start Voltage |
23.0Vdc |
|
No Load Power Consumption |
30W |
|
Table 3 Charge Mode Specifications | ||
Utility Charging Mode | ||
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
100A |
|
MPPT Solar Charging Mode | ||
Max. PV Array Power |
6200W |
|
Nominal PV Voltage |
240Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~450Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current(AC charger plus solar charger) |
120A |
|
Table 4 Two Load Output Power | ||
Full Load |
4200W |
|
Maximum Main Load |
4200W |
|
Maximum Second Load(battery model) |
1400W |
|
Main Load Cut Off Voltage |
26VDC |
|
Main Load Return Voltage |
27VDC |
|
